Baseline Hydraulic Pinch Gauges

Product Group Summary

Baseline hydraulic pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Views Of The Products Below

Item # Baseline Hydraulic Pinch Gauges List Price

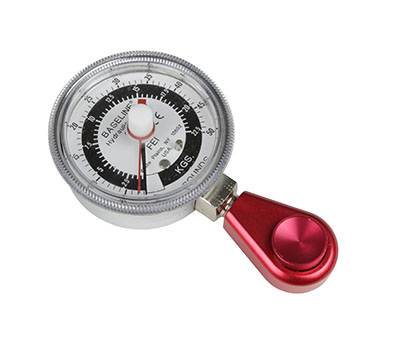

12-0226 LiTE - 50 lb. Capacity - red, 1 year warranty $175.00
Baseline Pinch Gauge - Hydraulic - LiTE - 50 lb Capacity:
Baseline LiTE hydraulic pinch gauge has a 50 pound capacity. Unit has red body and 2-1/2" analog gauge. Unit has 1 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 5" x 2.5" x 1"

Weight: 2 lbs

UPC: 714905013736

Notice: Typically ships in 1-2 days.




12-0235 Standard - 50 lb. Capacity - blue, 2 year warranty $225.00
Baseline Pinch Gauge - Hydraulic - Standard - 50 lb Capacity:
Baseline standard hydraulic pinch gauge has a 50 pound capacity. Unit has blue body and 2-1/2" analog gauge. Unit has 2 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 5" x 2.5" x 1"

Weight: 2 lbs

UPC: 714905013804

Notice: Typically ships in 1-2 days.

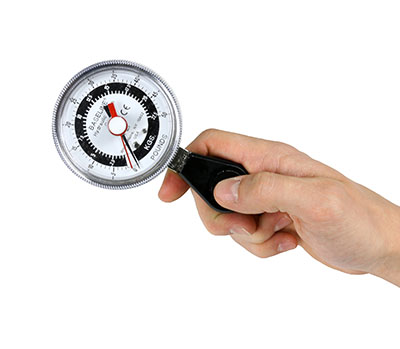

12-0222 HD - 50 lb. Capacity - black, 5 year warranty $330.00
Baseline Pinch Gauge - Hydraulic - HD - 50 lb Capacity:
Baseline HD hydraulic pinch gauge has a 50 pound capacity. Unit has black body and 2-1/2" analog gauge. Unit has 5 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 5" x 2.5" x 1"

Weight: 2 lbs

UPC: 714905013729

Notice: Typically ships in 1-2 days.




12-0480 5-level Pinch Clinic Mode - 50 lb Capacity $250.00
Baseline Pinch Gauge - Hydraulic - 5-level Pinch Clinic Mode - 50 lb Capacity:
Hydraulic 5-level pinch gauge is available in clinic mode (gauge facing clinician) and feedback mode (gauge facing patient). Adjustable handle fits all size hands for accurate and repeatable pinch measurements. 5-position strength test protocols (MVE and MMVE) now can be used for pinch measurements. Easy to adjust paddle accommodates to any size hand (other pinch gauges only have one pinch width). Pinch width without paddle is the same width as standard pinch gauges, both mechanical and hydraulic. 5 pinch positions permits MVE and MMVE protocols to be used with tip, palmar and key tests.

Dimensions: 5" x 2.5" x 1"

Weight: 3 lbs

UPC: 714905063373

Notice: Typically ships in 1-2 days.




Item # Baseline Hydraulic Pinch Gauges List Price
12-0239 HiRes Gauge - 50 lb. Capacity - blue, 2 year warranty $285.00
Baseline Pinch Gauge - Hydraulic - HiRes Gauge - 50 lb Capacity:
Baseline HiRes hydraulic pinch gauge has a 50 pound capacity. Unit has blue body and an extra-large 3-1/2" analog gauge for easy reading. Unit has 2 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 6" x 3.5" x 1"

Weight: 2 lbs

UPC: 714905013828

Notice: Typically ships in 1-2 days.




12-0228 HiRes Gauge - ER 100 lb. Capacity - blue, 2 year warranty $275.00
Baseline Pinch Gauge - Hydraulic - HiRes Gauge - ER 100 lb Capacity:
Baseline ER HiRes hydraulic pinch gauge has an extended range 100 pound capacity. Unit has blue body and an extra-large 3-1/2" analog gauge for easy reading. Unit has 2 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 6" x 3.5" x 1"

Weight: 2 lbs

UPC: 714905013743

Notice: Typically ships in 1-2 days.




12-0237 Digital LCD Gauge - ER 100 lb. Capacity - blue, 2 year warranty $705.00
Baseline Pinch Gauge - Hydraulic - Digital LCD Gauge - ER 100 lb Capacity:
Baseline LCD HiRes hydraulic pinch gauge has an extended range 100 pound capacity. Unit has blue body and a 2-1/2" LCD gauge. LCD gauge features electronic zero calibration system, max clear button, toggle maximum and current read-out, lb / kg toggle, 2 AAA batteries (included). Unit has 2 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 5" x 2.5" x 1"

Weight: 2 lbs

UPC: 714905013811

Notice: Typically ships in 1-2 days.




12-0272 Standard - 50 lb. Capacity - blue, 2 year warranty, Reverse Facing Gauge $257.50
Baseline Pinch Gauge - Hydraulic - Standard - 50 lb Capacity - Reverse Facing Gauge:
Baseline standard hydraulic pinch gauge has a 50 pound capacity. Unit has blue body and 2-1/2" analog gauge. Unit has 2 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case. Reverse gauge allows for pinch gauge use as an isometric exerciser.

Dimensions: 6" x 3.5" x 5"

Weight: 2 lbs

UPC: 714905064615

Notice: Typically ships in 1-2 days.




12-0023 50 lb. Dial Gauge and Analog Output Signal - blue, 2 year warranty $722.50
Baseline Pinch Gauge - Hydraulic - 50 lb Dial Gauge and Analog Output Signal:
Baseline dial gauge with transducer hydraulic pinch gauge has a 50 pound capacity. Unit has blue body and 2-1/2" analog gauge and an analog output signal carrying pressure reading. Unit has 2 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 6" x 3.5" x 1"

Weight: 2 lbs

UPC: 714905014498

Notice: Typically ships in 1-2 days.



12-0023 Download Materials

View Catalog Page

Download Image
12-0238 100 lb. Analog Output Signal, no Gauge - blue, 2 year warranty $515.00
Baseline Pinch Gauge - Hydraulic - 100 lb Analog Output Signal, no Gauge:
Baseline ER transducer hydraulic pinch gauge has an extended range 100 pound capacity. Unit has blue body and transducer that transmits an analog output signal carrying pressure reading. Unit has 2 year manufacturer's warranty. The pinch gauge uses a hydraulic system to assure convenience, product reliability and measurement accuracy and repeatability. Therapist can support the pinch gauge during testing, yielding a more accurate result for all pinch tests. Use for tip, key and palmer tests. Maximum reading remains until the unit is reset. The Baseline pinch gauge is made in USA and the results are consistent with published Baseline and Jamar studies. The strength reading can be viewed as pounds or kilograms. CE Certified. Comes in a protective carrying case.

Dimensions: 8" x 5" x 7"

Weight: 2 lbs

UPC: 714905014580

Notice: Typically ships in 1-2 days.



12-0238 Download Materials

View Catalog Page

Download Image
Item # Baseline Hydraulic Pinch Gauges List Price
12-0490 5-level Pinch Feedback Mode - 50 lb Capacity $250.00
Baseline Pinch Gauge - Hydraulic - 5-level Pinch Feedback Mode - 50 lb Capacity:
Hydraulic 5-level pinch gauge is available in clinic mode (gauge facing clinician) and feedback mode (gauge facing patient). Adjustable handle fits all size hands for accurate and repeatable pinch measurements. 5-position strength test protocols (MVE and MMVE) now can be used for pinch measurements. Easy to adjust paddle accommodates to any size hand (other pinch gauges only have one pinch width). Pinch width without paddle is the same width as standard pinch gauges, both mechanical and hydraulic. 5 pinch positions permits MVE and MMVE protocols to be used with tip, palmar and key tests.

Dimensions: 5" x 2.5" x 1"

Weight: 3 lbs

UPC: 714905064653

Notice: Typically ships in 1-2 days.




12-0480P Additional paddle for 5-level pinch gauge $27.50
Baseline Pinch Gauge - Hydraulic - 5-level Pinch - additional Paddle only:
Replacement paddle for 5-level pinch gauge. Fits both clinic and feedback models.

Dimensions: 2" x 1" x 2"

Weight: 0.3 lbs

UPC: 714905064646

Notice: Typically ships in 1-2 days.
