Dynasyst™ - Orfitube™

Product Group Summary

Orfitube tubes are lightweight outrigger attachments used to create mobilization orthoses. These tubes are easy to bend into shape and cut to length. These outriggers can be securely attached to any type of base orthosis. Pre coiled wiring saves time and energy in formng more difficult orthoses.

Views Of The Products Below

Item # Dynasyst™ - Orfitube™ List Price
24-5911 Orfitube™ Kit $80.00
Orfitube™ Kit:
Orfitube™ is a thermoplastic tube intended for the creation of dynamic hand orthoses with outrigger and braided elastic. These tubes glide and protect the braided elastic and serve as a directional pully. The Orfitube™ Kit includes: 10 tubes that are 330mm (13") long; 3 different types of elastic thread on a spool with different degrees of elastic strength; 1 spool of polyester monofilament for an optimal gliding effect; 2 bending wires.

Dimensions: 18.50" x 2.20" x 4.70"

Weight: 0.44 lbs

UPC: 714905075581

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5911 Download Materials

View Manual

Download Image
24-5912 Orfitubes™ (10 pcs.) and Bending Wires (2 pcs.) $37.50
Orfitubes™ (10 pcs.) and Bending Wires (2 pcs.):
Orfitube™ is a thermoplastic tube intended for the creation of dynamic hand orthoses with outrigger and braided elastic. These tubes glide and protect the braided elastic and serve as a directional pully. This kit includes: 10 tubes that are 330mm (13") long; 2 bending wires

Dimensions: 6.00" x 1.00" x 4.00"

Weight: 0.20 lbs

UPC: 714905075598

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5912 Download Materials

View Manual

Download Image
24-5914 Elastic Thread - Max Resistance 7 oz. (200 g) - 30ft (10m) $12.50
Elastic Thread - Max Resistance 7 oz. (200 g) - 30ft (10m):
This Elastic Thread has a max resistance of 7 oz. (200g) and it is 30ft (10m) in length. It shows no signs of aging after 6 weeks of maximum stretching. This thread is ideal for supporting weak muscles of the fingers.

Dimensions: 6.00" x 1.00" x 4.00"

Weight: 0.20 lbs

UPC: 714905075611

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5914 Download Materials

View Manual

Download Image
24-5915 Elastic Thread - Max Resistance 14 oz. (400 g) - 30ft (10m) $15.00
Elastic Thread - Max Resistance 14 oz. (400 g) - 30ft (10m):
This Elastic Thread has a max resistance of 14 oz. (400g) and it is 30ft (10m) in length. It shows no signs of aging after 6 weeks of maximum stretching. This thread is ideal for most dynamic finger orthoses.

Dimensions: 5.00" x 2.00" x 3.50"

Weight: 0.20 lbs

UPC: 714905075628

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5915 Download Materials

View Manual

Download Image
24-5916 Elastic Thread - Max Resistance 21 oz. (600 g) - 30ft (10m) $15.00
Elastic Thread - Max Resistance 21 oz. (600 g) - 30ft (10m):
This Elastic Thread has a max resistance of 21 oz. (600g) and it is 30ft (10m) in length. It shows no signs of aging after 6 weeks of maximum stretching. This thread is ideal for dynamic wrist extension orthoses or for very persistent finger contractures.

Dimensions: 5.00" x 2.00" x 3.00"

Weight: 0.20 lbs

UPC: 714905075635

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5916 Download Materials

View Manual

Download Image
24-5917 Orfitube™ Ends (20 pcs.) $50.00
Orfitube™ Ends (20 pcs.):
Orfitube™ Ends are Chromium-plated tube ends that fit on all Orfitubes. These end pieces reduce the rubbing of the elastic thread with the tube edge to a minimum.

Dimensions: 6.70" x 0.80" x 3.90"

Weight: 0.04 lbs

UPC: 714905075642

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5917 Download Materials

View Manual

Download Image
Item # Dynasyst™ - Orfitube™ List Price
24-5918 Orfitube™ Adjuster Kit $37.50
Orfitube™ Adjuster Kit:
The Single Orfitube™ Adjuster is a structural unit placed on hand orthoses to give the orthoses added adjustable and dynamic action. It gives full control of the longitudinal and lateral positions of the Orfitubes. Its compact design allows you to fix one individual adjuster for each finger. The adjuster is elegant, lightweight and very cost-effective.

Dimensions: 15.00" x 0.80" x 4.50"

Weight: 0.28 lbs

UPC: 714905075659

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5918 Download Materials

View Manual

Download Image
24-5919 Single Orfitube™ Adjuster (5 pcs.) + Allen wrench $35.00
Single Orfitube™ Adjuster (5 pcs.) + Allen wrench:
The Single Orfitube™ Adjuster is a structural unit placed on hand orthoses to give the orthoses added adjustable and dynamic action. It gives full control of the longitudinal and lateral positions of the Orfitubes. Its compact design allows you to fix one individual adjuster for each finger. The adjuster is elegant, lightweight and very cost-effective. This kit includes 5 adjusters and 1 Allen Wrench.

Dimensions: 6.70" x 0.80" x 3.90"

Weight: 0.07 lbs

UPC: 714905075666

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5919 Download Materials

View Manual

Download Image
24-5920 Orfitube™ Bending Tool $12.50
Orfitube™ Bending Tool:
The Orfitube™ Bending Tool allows for easy bending of the strong Orfitubes without stress on the thumbs.

Dimensions: 9.30" x 0.80" x 6.30"

Weight: 0.11 lbs

UPC: 714905075673

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.




24-5920 Download Materials

View Manual

Download Image

Download Image
24-5921 Finger Coil Spring (10 pcs.) $17.50
Finger Coil Spring (10 pcs.):
The Finger Coil Spring has a short leg which is bent and anchored in the dorsal bridge of the splint. The long leg is bent and cut to length. The spring power is adjusted by the coil design. Its gauge is 0.7 mm (1/37"), while its coil diameter is 5 mm (1/5"). This kit includes 10 finger coil springs.

Dimensions: 6.50" x 0.13" x 4.00"

Weight: 0.20 lbs

UPC: 714905075680

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.




24-5921 Download Materials

View Manual

Download Image

Download Image
24-5922 Knuckle Bender Coil Spring (10 pcs.) $17.50
Knuckle Bender Coil Spring (10 pcs.):
The Knuckle Bender Coil Springs are designed to assist the intrinsic muscle weakness. Ideal for those with ulnar nerve palsy. The spring can be turned upside down to increase spring power. Its torque force at full finger extension is ca. 1000 g. cm. This kit includes 10 knuckle bender coils.

Dimensions: 6.50" x 0.13" x 4.00"

Weight: 0.20 lbs

UPC: 714905075697

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.




24-5922 Download Materials

View Manual

Download Image

Download Image
24-5923 Finger Extension Assist (10 pcs.) $17.50
Finger Extension Assist (10 pcs.):
The Finger Extension Assist has a short leg that can be secured between two layers of Orfit® Classic. Its long leg can be bent to size. At total finger flexion the spring is tightened up to a torque force of ca. 2000 g. cm. This spring is specially designed for finer extension assists in combination with an Orfit Splint. This kit includes 10 Finger Extension Assist pieces.

Dimensions: 6.50" x 0.13" x 4.00"

Weight: 0.20 lbs

UPC: 714905075703

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.




24-5923 Download Materials

View Manual

Download Image

Download Image
Item # Dynasyst™ - Orfitube™ List Price
24-5924 Wrist Extension Coil Spring (10 pcs. - 5 left + 5 right) $20.00
Wrist Extension Coil Spring (10 pcs. - 5 left + 5 right):
The Wrist Extension Coil Springs come in 10 pieces with 5 springs designed for the left hand and 5 springs designed for the right hand. The torque force when tightened over an angle of 130 degrees is 5000 g. cm. The gauge is 1.5 mm (1/16") while the coil diameter is 15 mm (3/5").

Dimensions: 8.00" x 0.13" x 7.00"

Weight: 0.50 lbs

UPC: 714905075710

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5924 Download Materials

View Manual

Download Image
24-5925 Radial Wrist Extension Splint, small $42.50
Radial Wrist Extension Splint, small:
The Radial Wrist Extension Splint is ideal for radial nerve patients who need two strong assisting extension coils. Using this splint in the recovery process, the coils can help the patient rebalance muscle power. The Radial Wrist Extension Splint, small kit includes: 2 Orfit® Classic Precuts (3.2mm (1/8") non perforated, stiff); and 2 lateral coil springs (gauge diameter 15 mm (3.5") with a torque force of 5000 g. cm.)

Dimensions: 10.50" x 0.50" x 7.00"

Weight: 0.50 lbs

UPC: 714905075727

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.




24-5925 Download Materials

View Manual

Download Image

Download Image
24-5926 Radial Wrist Extension Splint, medium $50.00

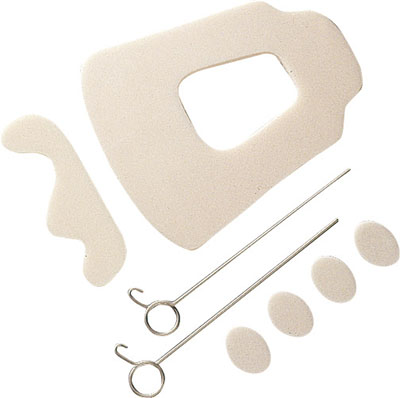

Radial Wrist Extension Splint, medium:
The Radial Wrist Extension Splint is ideal for radial nerve patients who need two strong assisting extension coils. Using this splint in the recovery process, the coils can help the patient rebalance muscle power. The Radial Wrist Extension Splint, medium kit includes: 2 Orfit® Classic Precuts (3.2mm (1/8") non perforated, stiff); and 2 lateral coil springs (gauge diameter 15 mm (3.5") with a torque force of 5000 g. cm.)

Dimensions: 6.50" x 0.50" x 5.50"

Weight: 0.50 lbs

UPC: 714905075734

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.




24-5926 Download Materials

View Manual

Download Image

Download Image
24-5927 Radial Wrist Extension Splint, large $57.50
Radial Wrist Extension Splint, large:
The Radial Wrist Extension Splint is ideal for radial nerve patients who need two strong assisting extension coils. Using this splint in the recovery process, the coils can help the patient rebalance muscle power. The Radial Wrist Extension Splint, large kit includes: 2 Orfit® Classic Precuts (3.2mm (1/8") non perforated, stiff); and 2 lateral coil springs (gauge diameter 15 mm (3.5") with a torque force of 5000 g. cm.)

Dimensions: 8.00" x 0.50" x 7.00"

Weight: 0.50 lbs

UPC: 714905075741

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.




24-5927 Download Materials

View Manual

Download Image

Download Image
24-5928 Stainless Steel Spring Wire - 45ft (15m) $30.00
Stainless Steel Spring Wire - 45ft (15m):
The Stainless Steel Spring Wire is used to design personal coil springs and outriggers. Its length is 15 m (45 ft) and its thickness is 1 mm (1/24").

Dimensions: 9.00" x 0.50" x 7.00"

Weight: 0.50 lbs

UPC: 714905075758

Notice: Typically ships in 1-2 days.
Only for sale in the USA and Canada.



24-5928 Download Materials

View Manual

Download Image
